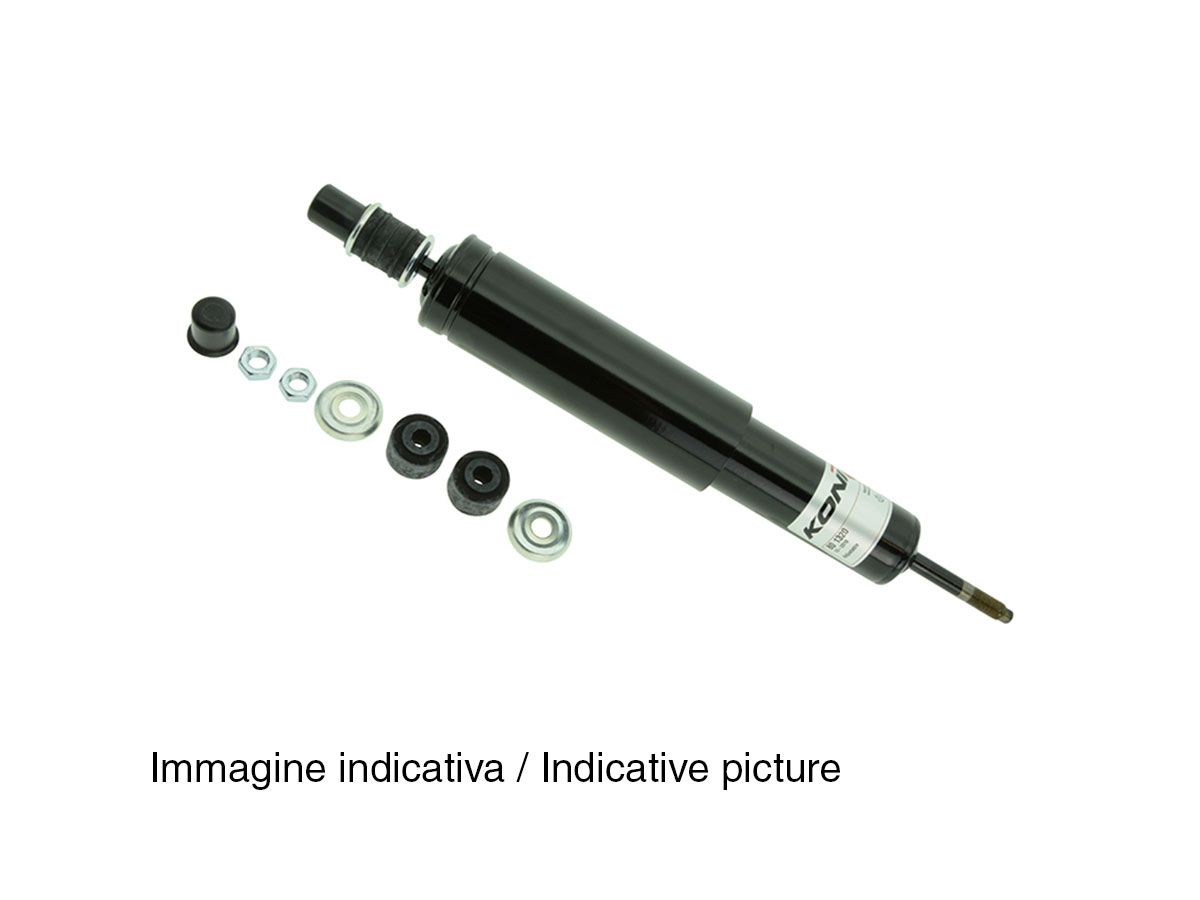

KONI FRONT LEFT SHOCK ABSORBER
Code : 88 1712SP3
Shock absorber model : HT RAID
Mounting Side : Front left
Type : Oil
External adjustment : No
Attention : RAID Dampers, fit vehicles with standard or raised suspension, Front / Rear: 0 - 50mm
Thanks to the knowledge acquired over the years and the development of the specific range for off-road vehicles, Koni has succeeded in creating a line of uncompromising shock absorbers, large in size, equipped with reinforced attachments and with special oil; all elements that make Koni Raid ideal for the most extreme and demanding journeys. The Koni Raid shock absorber is also able to support rises of up to 5cm depending on the application.
The main features of the Koni Raid line are:
Twin pipe technology
- the thickness of the outer tube is 2.5mm; the cushioning function in case of deformation or damage to the outer tube due to impact with rocks is still guaranteed.
- Oil tank
- 70mm wide hole.
- The oil volume has been doubled to achieve better cooling and better efficiency.
Attacks
-Solid and reinforced.
- 360 ° welded connections.
Adjustability
-Possibility to adjust the calibration in order to adapt the shock absorber to the springs and load weights, so as to extend its life cycle.
-Double dynamic protection
-In extension: thanks to a hydraulic shut-off valve.
-In compression: greater safety given by the structure, able to withstand strong impacts.
Easy to assemble
-Koni Raid shock absorbers adapt perfectly to the original attacks.
-No modifications to the car are required for assembly.
